Solar Crimper MC4 PV Crimping Pliers

Solar Crimper MC4 PV Crimping Pliers

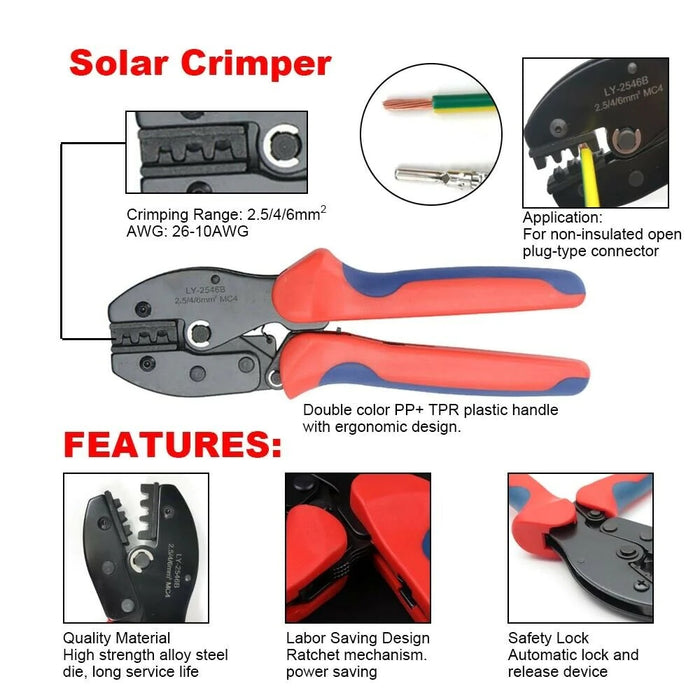

Key Features:

• Ratcheting mechanism with adjustable clamping force allows for precise, repeatable crimps | Compound action design puts more crimping power into each squeeze.
• Double crimping die creates a secure crimp that resists pull-out | Ratcheting function allows you to secure a wire connector in the die before inserting the stripped wire into the barrel.
• Quick release lever frees the crimper jaws in any position and when double crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.
• Steel jaw contains color-coded wire size markings for red (22-18 AWG), blue (16-14 AWG), and yellow (12-10 AWG) terminals | Ergonomic bi-material handles offer a comfortable, secure grip.
• Ideal for nylon insulated solderless terminals - It is not recommended to be used with heat-shrink connectors.

Specifications:

• Capacity: 2.5/4.0/6.0mm²
• Color: Multicoloured
• Material: Tool steel

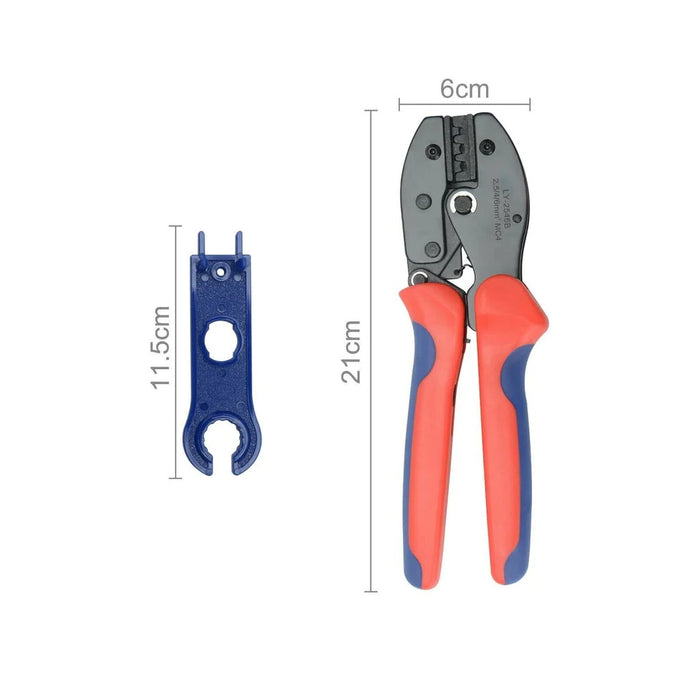

• Size: Pliers: 21*6cm, Wrench: 11.5cm, Connector: 10.6cm
• Type: Solar Crimper
• Model: Crimper Crimping Pliers
• AWG: 26-10 AWG
• Features: MC4 Wire Crimper+Connectors+Spanners
• Wire Crimper Weight: 490g
• Wire Crimper Length: 220mm
• Rated Current: 22(2.5 mm),30A(4,6 mm)
• Protection Degree: IP2X
• Withstanding Voltage: 1000 V DC
• Contact Resistance: Less than 0.2 Mohms
• Insulation material: PPO + PA
• Temperature Range: -40 C ~ +90 C
• Flame Class: UL94-VO or UL94-5A
• Rated Current: 30A
• Suitable cable: 2.5mm 2.4mm 2.6mm2(AWG14,AWG12,AWG10)
• Pin dimension: 4.0 mm dia.
• Contact resistance: ≤0.2mmΩ
• Waterproof degreeŁşIP67
• Withdrawal force: ≥50N
• Insertion force: ≤50N

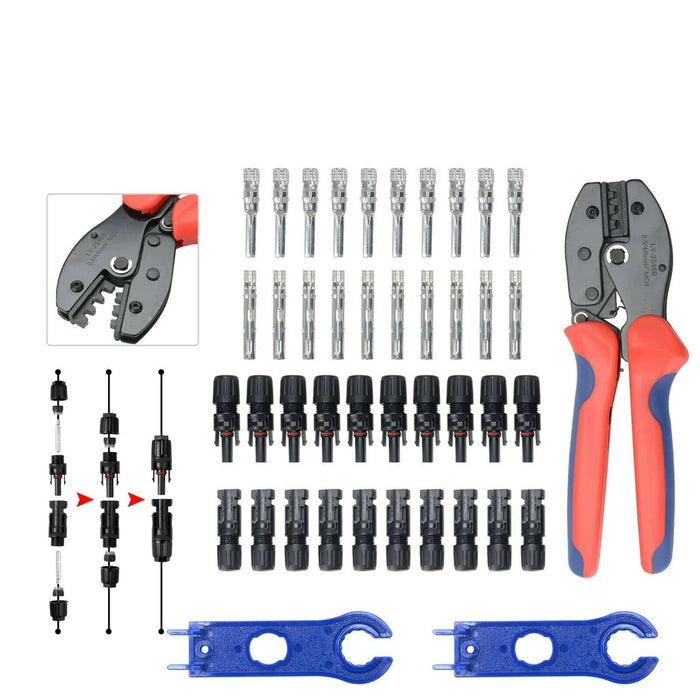

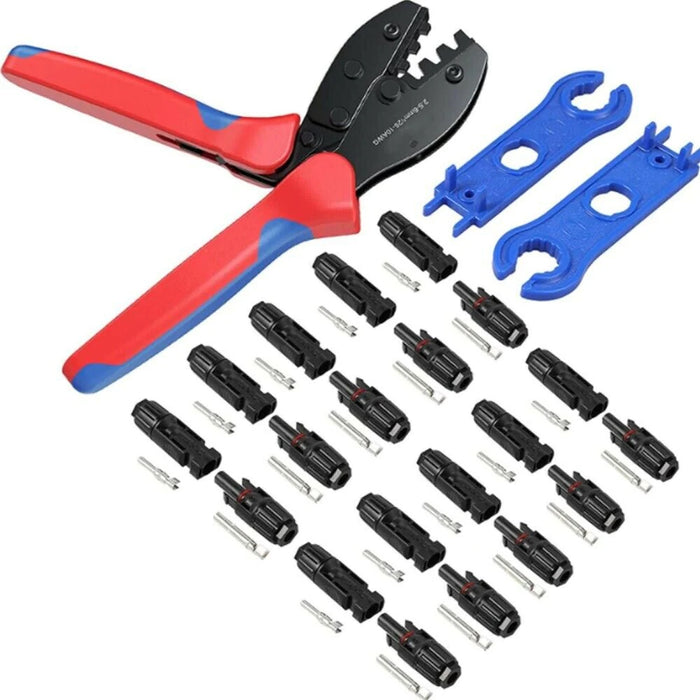

Package Includes:

• 1x MC4 Wire Crimper LY-2546B
• 10 Pairs MC4 Solar Connectors

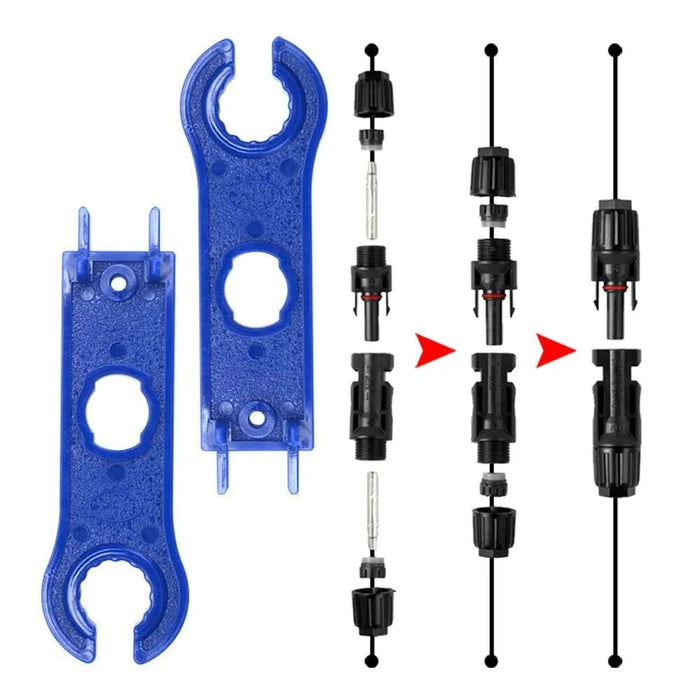

• 2x MC4 Spanners PV-SCM4
