Ferrule Crimper For Electrical Terminals - 1200 Piece Set

No Welding connection body design., Adjustable Ratchet and Lever Action Construction reduces fatigue degree. Special Four-Mandrel Crimping Style for Square Crimp. Ergonomic designed real cushion double color.

Specifications:

• Material: PVC + Copper
• E0508: white, #22AWG 0.5qmm, F: 8mm, L: 14.4 mm, B: 2.6 mm, D: 1.3 mm, C: 1 mm, Quantity: 200
• E7508: grey, #20AWG 0.75qmm, F: 8mm, L: 14.4 mm, B: 2.8 mm, D: 1.6 mm, C: 1.3 mm, Quantity: 200
• E1008: red, #18AWG 1qmm, F: 8mm, L: 14.4 mm, B: 3.0 mm, D: 1.8 mm, C: 1.5 mm, Quantity: 200
• E1508: black, #16AWG 1.5qmm, F: 8mm, L: 14.4 mm, B: 3.5 mm, D: 2.1 mm, C: 1.8 mm, Quantity: 250
• E2508: blue, #14AWG 2.5qmm, F: 8mm, L: 15.2 mm, B: 4.0 mm, D: 2.6 mm, C: 2.3 mm, Quantity: 250
• E4009: grey, #12AWG 4.0qmm, F: 9mm, L: 18.2 mm, B: 4.4 mm, D: 3.2 mm, C: 2.8 mm, Quantity: 50
• E6012: yellow, #10AWG 4.0qmm, F: 12mm, L: 20.2 mm, B: 6.1 mm, D: 3.9 mm, C: 3.5 mm, Quantity: 25
• E10-12: red, #7AWG 10.0qmm, F: 12mm, L: 21.5 mm, B: 7.6 mm, D: 4.9 mm, C: 4.5 mm, Quantity: 25

Package includes:

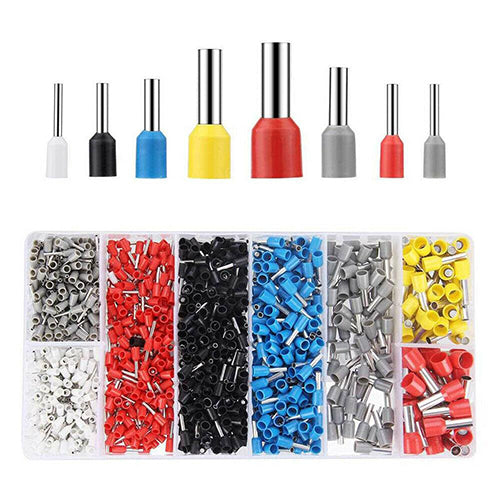

• 1200 x Crimp Terminal End

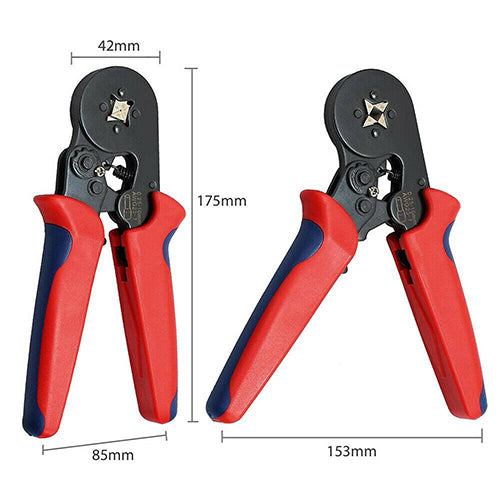

• 1 x Crimping Plier
• 1 x Storage
