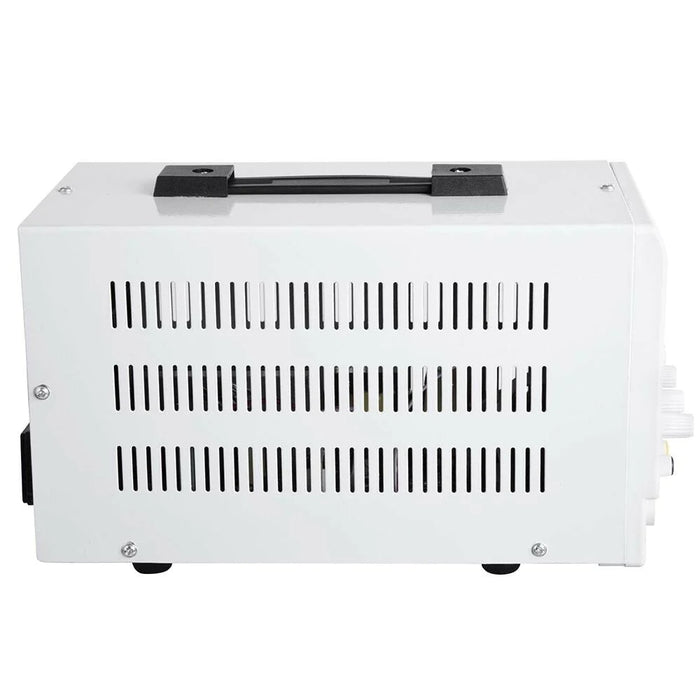

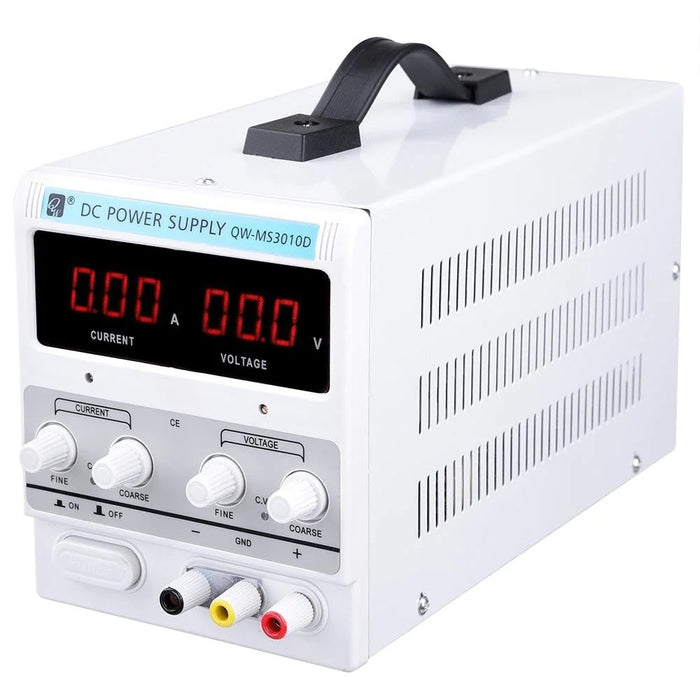

30V 10A DC Power Supply

30V 10A DC Power Supply Precision Variable Digital Adjustable Lab Grade

Key Features:

• Perfect for product testing aging, battery industry, inverter, LED manufacturing industry, and other all need dc regulated power supply
• Dual LED Three Digital Tube Display
• Constant voltage and constant current operation mode (C.C and C.V. automatic conversion)
• Multiple protections: over voltage (OVP), open circuit (OCP),over temperature (OTP)
• Safe circuit design, high quality key components adopted, the power supply can be used in 24 hours with full load
• Intelligent temperature control fan adjusts the speed according to the load situation, effectively reduce noise and prolong the life of fan
• PWM switching voltage stabilizer, MOS linear adjustment mode

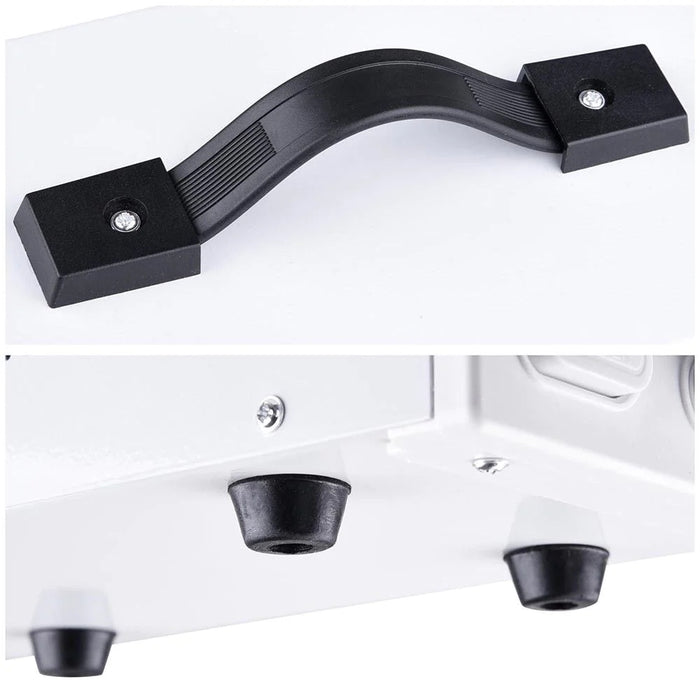

• Durable steel case


Specification:

• 10A Power Supply -Output current: DC 0-10A Continuous adjustable
• Input voltage: AC 220V-240V, 50Hz
• Output voltage: DC 0-30V Continuous adjustable
• Display resolution: voltage: 0.1V, current: 0.1A
• Display precision: ±1% ±1digit
• Voltage stabilization: ≤0.05% +10mV
• Current stabilization: ≤0.1% +10mA
• Load stabilization: CV≤0.1% +1mV / CC≤0.1% +10mA
• Ripples and noises: CV≤10mV(RMS) / CC≤20mA(RMS)
• Working Temperature: -10 ~ 40 ºC ; Relative Humidity:<80%
• Storage Conditions: -20 ~ 80ºC ; Relative humidity :<80%
• Dimension: 260 x 125 x 155mm

Package Includes:

• 1x DC Power Supply
• 1x Power Cord
• 1x Clip cable

• 1x Manual
